HiPath 3000 systems include below models:
● System for standalone installation and for installation in 19-inch cabinets:

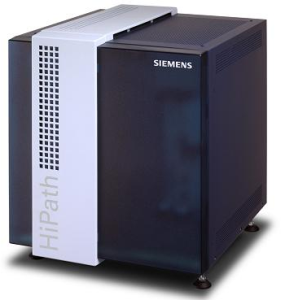

– HiPath 3800
– HiPath 3750
● Systems for wall mounting:
– HiPath 3550
– HiPath 3350
● Systems for installation in 19-inch cabinets
– HiPath 3700
– HiPath 3500
– HiPath 3300
Information on the capacity limits of the different HiPath 3000 systems is provided in below Table:
HiPath 3000 - open for increased efficiency in enterprises
HiPath 3000 is a powerful, reliable communication platform for every sector of industry. It offers you the variety of services of classic telephony, combined with state-of-the-art solutions for Unified Communications. And all in one single, flexible and cost-saving configuration.
As a modular communication platform, HiPath 3000 is able to satisfy the requirements of companies with stringent demands. It is a flexible and scalable solution that can be combined with an incredibly broad range of applications and features and coordinated with the individual requirements of your company.
HiPath 3000 is an innovative and flexible convergence platform that perfectly adapts communications to the company structure medium-sized businesses. Whether your aim is to enhance growth or seamlessly integrate branch offices or mobile staff, the three expansion stages of the HiPath 3000 are the perfect solution for optimizing costs and business processes.
HiPath 3000 Real Time Services Manager supports optimized HiPath network administration for up to 32 nodes and 1,000 stations. It also provides real-time services and features on a network-wide and cross-system basis.
HiPath 3000 is a secure, reliable communications system with high failure tolerance. The system is ideal for both packet-switched (LAN/WAN) and line-switched (ISDN) environments, or a mixture of the two. This guarantees gradual migration on both the network side and user side.
The flexibility of HiPath 3000 is especially obvious in mixed infrastructures where Voice over IP is installed but traditional analog and digital telephones, fax machines, and modems are still in use. HiPath 3000 supports any combination of IP, analog, and digital telephones, as well as PC clients and cordless phones.
Enhanced features of traditional telephony combined with applications such as CTI (Computer Telephony Integration), UCD (Uniform Call Distribution), and Unified Messaging support all communications processes at the workplace and in all work environments. If an extension is left unattended, the Team function or integrated voicemail ensures that no call is missed.
And HiPath 3000’s user-friendly executive-secretary function ensures the smooth flow of communication at attendant or secretary stations in the reception area where multiple communications processes converge. Integrated call distribution ensures reachability and guarantees fast customer contact. All these factors combine to make telephony not only easier to use, but also more efficient.
Internet telephony
Nowadays, there are more network providers offering telephony services than ever before. As the de-facto standard for Internet telephony, induces Internet telephony service providers (ITSP) to provide attractive applications and business models.
With its SIP interfaces, HiPath 3000 helps to converge network services and to drastically cut communication costs. HiPath 3000 already supports new SIP options, including SIP phones or user and system connections for Internet telephony.
With Virtual Private Networks (VPN) and authentication applications, you can shape your company securely for the future with HiPath 3000, without any compromises in terms of security.
Secure company connection
HiPath 3000 offers modern security mechanisms for optimal connection to the company network to better serve the needs of increasing staff mobility and new working methods (teleworking, for instance). The system’s integrated VPN (Virtual Private Network) function lets staff access confidential information at any time, from any location in the world over a low-cost, secure Internet connection. Another major advantage is that mobile staff can be reached via their company phone number, regardless of their location. This service is both cost-effective and secure.
Lower costs
Consolidating voice and data communication in an IP-based network not only enables the deployment of applications that decrease company call charges and hardware costs, it may also increase productivity. A separate voice network no longer needs to be installed and maintained, resulting in decreased outlay for administration and maintenance for systems and applications, as these tasks are now centralized. In addition, existing Internet connections can be optimized for calls to the public telephone network, thereby reducing the costs for separate ISDN lines.
Flexible configuration
The “One wire to the desk” concept allows additional telephones to be connected via an existing LAN cable. Integrated mini-switches are used for connecting the PC. Power over Ethernet switches supply power to IP telephones without the need for additional PSUs. Convergent platforms allow DSL and ISDN connections to be combined. ISDN connections can be configured as backups in case a fault occurs in the IP connection to the provider. They can also be configured as additional channels, for example, for fax machines or modems.
HiPath ComScendo
As a software suite, HiPath ComScendo provides both the realtime IP system, HiPath 3000, as well as the telephones, with the most comprehensive array of voice communication services. And all of this regardless of whether it is used via IP, TDM telephones or PC clients.
Selected features:
• Advisory messages
• Intercept position/attendant console
• Camp-on/call waiting tone
• Missed calls list
• Do Not Disturb/"ringer cutoff"
• Call pickup
• Call forwarding from extensions
• Call source and call destination display
• Call intrusion on call forwarding and call pickup
• Classes of service
• Executive/secretary function
• Display languages (can be specified individually)
• Paging (internal announcement)
• Call charge recording
• Group call
• Internal texts for feature handset
• Internal telephone directory
• Conference (internal/external)
• Speed dialing (individual/central)
• Automatic line seizure
• Trunk keys
• Call toggling
• Text messages
• Music-on-hold with system-driven announcements
• External music source (optional)
• One Number Service
• Night service/day service
• Park
• Account code
• Relay (actuators/sensors)
• Consultation
• Callback on busy and no answer (automatic)
• Call number suppression
• Call signaling
• Call forwarding after timeout on RNA, immediately on busy
• Group ringing
• Hunt group (linear/cyclic)
• Changeover on (individual code lock)
• Telephone book, central
• Entrance telephone and door opener functions
• Transferring a call (internal/external)
• Number redial (enhanced)
• Automatic recall from public network carrier
• Encryption (SPE)
Always available:
Integrated voicemail
If an individual extension is left unattended, integrated voicemail ensures that no call is missed. The voicemail systems EVM (HiPath 33x0/35x0) and Xpressions Compact allow voice messages to be accessed and distributed in a user-specific voicemail box with individual announcements. Stored calls can therefore be accessed at any time, from any location.
Availability is enhanced by many user-friendly features:
• up to 24 individual mailboxes
• up to two hours recording capacity
• adjustable recording length
• a choice of two personal greetings
The "Auto Attendant" function redirects callers to another station, for instance, if a line is busy - simply and conveniently.
More detailed information on the features of HiPath Xpressions Compact can be found in the corresponding datasheet
optiClient Attendant
The optiClient Attendant software package is an optional application for HiPath 3000 and simulates an enhanced attendant console on a PC’s screen. All functions can be activated and executed via the PC keyboard and mouse.
optiClient Attendant and optiClient BLF are network-enabled
Connection of PC and telephony
TAPI-compliant applications can be integrated with CTI (Computer Telephony Integration) through the integration of voice and data.
All of the telephone traffic can be managed more professionally by means of call registration, call identification, and entry in action lists. Database connections allow customer queries to be answered competently.
Cost transparency and IP Accounting
As well as evaluating the costs of all communications services (phone, fax, Internet), costs can be analyzed according to station, trunk or department.
Communications data is directly transmitted via a LAN interface to a central server.
HiPath 3000 ports
On the network side
Euro ISDN
• S0 basic rate interface with DSS1 protocol
– System connection
– Point-to-multipoint connection
• S2M primary rate interface with DSS1protocol
US-ISDN
• Basic rate interface (BRI) and primary rate interface (T1/PRI)
Analog trunks
• Analog trunk connection without direct inward dialing (DDI/DID) with CLIP support
ITSP (Internet Telephony Service Provider) support via SIP
• System connection
• User connection
HG 1500
• 2 x10/100BaseT interface or 10/100 Mbps LAN/WAN gateway
On the user side
IP
• CorNet IP or SIP for integration of IP terminals
Analog
• a/b for connecting analog terminals, such as fax, telephones, and modem.
Digital
• For connecting digital two-channel system telephones (UP0/E)
• For connecting DECT base stations
Euro ISDN
• S0 user bus for up to eight independently powered terminal devices (e.g. Group 4 fax, ISDN-PC card)
HG 1500
• 2 x 10/100 BaseT interface/10/100 Mbit/s LAN/WAN gateway for connecting IP terminals
DECT
• Siemens Gigaset professional – GAP-enabled DECT terminals
Networking
• Support of SIP-Q V2 to:
– HiPath 3000 from V7
– HiPath 5000 RSM V9
– HiPath 4000 from V5
– OpenScape Voice
• Support for digital fixed connections S0,
S2M with CorNet-N and CorNet-NQ or QSig protocol
• Support of CorNet-NQ (TDM networking) to:
– HiPath 3000 from V7
– HiPath 4000 from V5
Other interfaces
V.24
• For connecting service PCs, call charge computers, call charge printers
• To connect external applications with the CSTA protocol
E&M interface (HiPath 3800 only)
LAN interface
• 10 Mbit for system administration via TCP/IP
Technical data
Power supply
Systems, by default, are designed for mains operation. Possible power outages can be optionally bypassed with an uninterruptible power supply (UPS).
• Rated input voltage (AC)
100 to 240 V
• Rated frequency 50/60 Hz
• Battery supply (DC) -48 V
Environmental/operating Conditions
• Temperature: +5 to +40 °C
• Relative humidity: 5 to 85%
Range
Up to approx. 1000 m between HiPath 3000 and system telephone with plug-in power supply unit if necessary, depending on the line network.
Between networked HiPath systems on premises belonging to the company:
• S0 permanent connection approx. 1,000 m
• S2M permanent connection 350 m max., depending on line network.
Installation of network adapters is necessary for increasing range.
